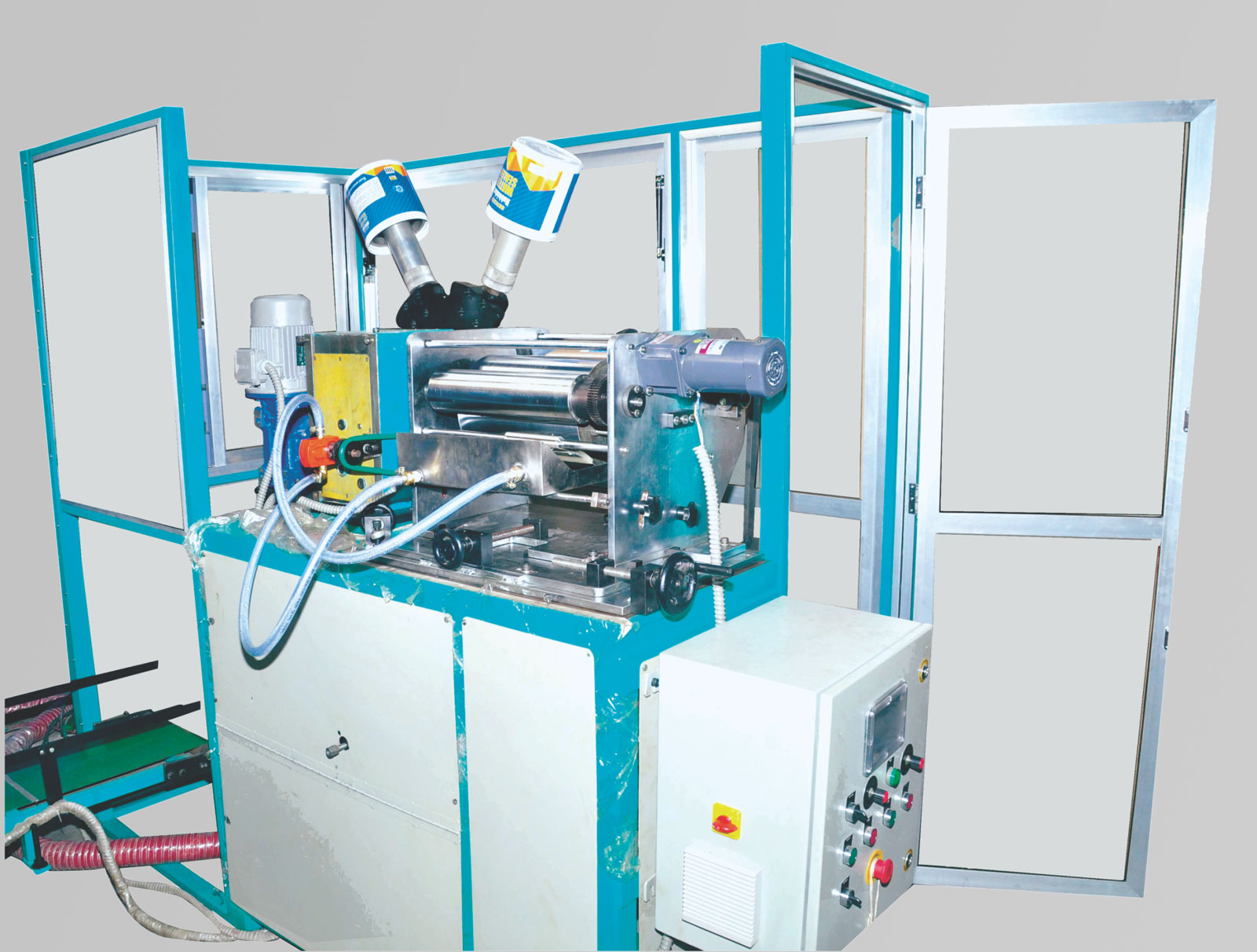

UV Lacquering Machine
UV Clear Coating and Varnishing Machine
Goldstar's manual or auto loading dedicated UV Lacquering Varnishing Coating machine provides an economical and effective solution for achieving high quality finishes on Pails, Buckets and similar products. Instant UV drying ensures easy handling after coating. Lacquer spreading stations ensure even distribution over the entire circumference.
Technical
| Unit | Value |
|---|---|
| Min. & Max Dia. | 110mm x 350mm |
| Min. & Max. Height | 120mm x 400mm |
| Pneumatic Pressure | @8-10 kg/cm2 |
| Air Consumption | @12m3/hr |
| Total Power Consumption | 6.5 kilowatts |
| Max. Impression | @ 500-600/hr (20 Ltr Bucket) |
| Total Machine Weight | 2500 kgs |
Features
- Auto / Manual Loading system.
- Individual AC drive for uniform lacquer distribution on pail which helps to control lacquer layer on container.
- Fine lacquer distribution system.
- Re-circulation of lacquer with the help of pump.
- Lacquer spreading stations for uniform surface throughout the circumference.
- Online UV lacquer drying.
- Auto ejection on conveyor belt.
