GD 210 Rotary Pail Printer
GD 210 Rotary Printer with Varnish

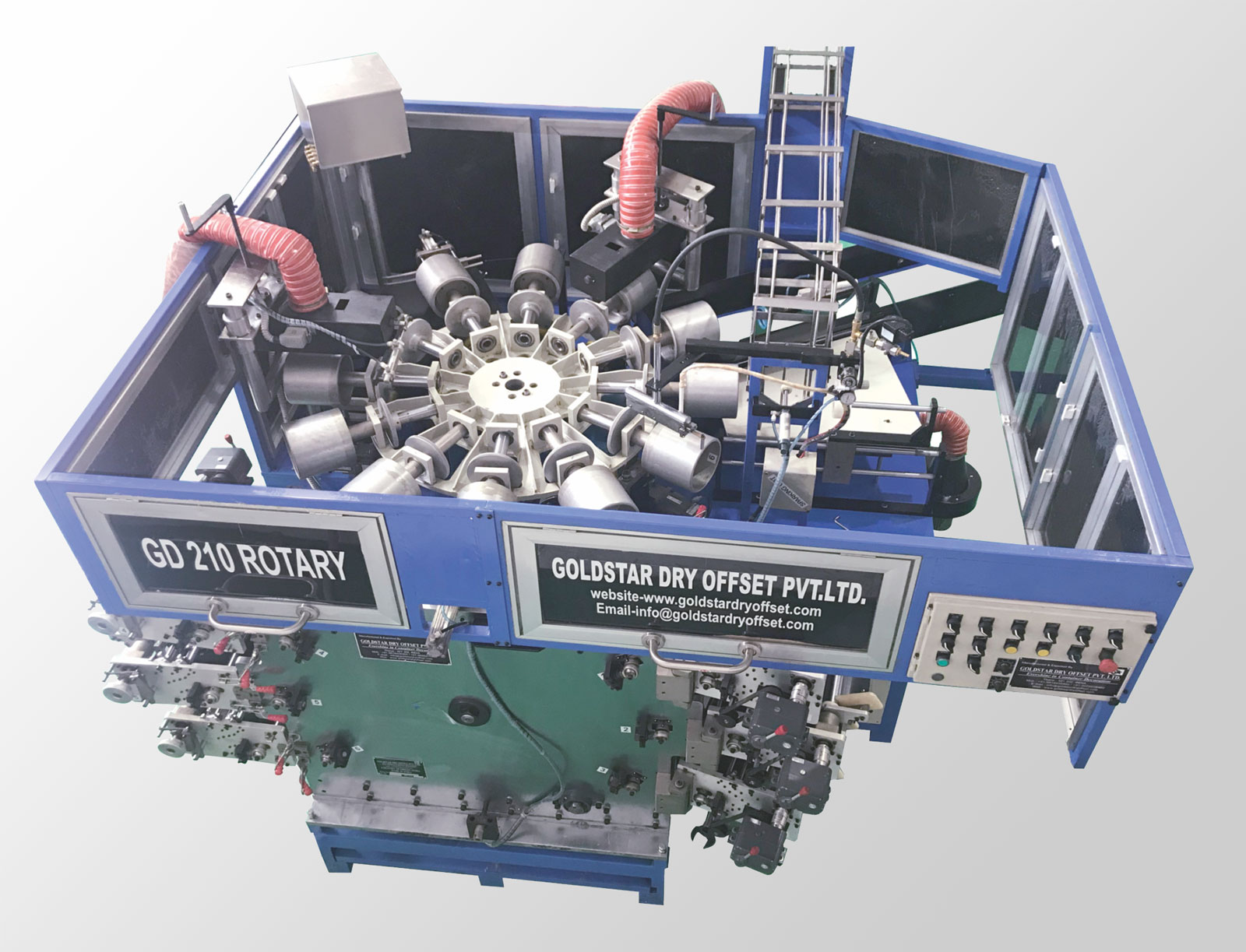

Goldstar's GD 10 Rotary Pail Printer Varnisher is a highly advanced printing solution with additional capability to apply a lacquer/varnish inline. The printer can handle sizes up to 1.32 US gallons. This multi-color dry offset tub and pail printing machine includes features like Auto Loading, Flame treatment with auto ignition, 360° printing with precise registration, Instantaneous UV drying, Auto ejection with exit conveyor, Lower ink consumption, Less floor space, and is suitable for conical & cylindrical containers (Wide Mouth).
The machine is equipped with an AC motor with variable AC frequency inverter for variable speed, acceleration, and deceleration control, Anti-Backlash plate cylinder gear, and Micrometer lateral and radial plate cylinder adjustment. The Complete vacuum system with a pump holds each container on mandrels at the necessary position, and Positive timing throughout the machine ensures that each container is printed accurately.
The machine is equipped with an AC motor with variable AC frequency inverter for variable speed, acceleration, and deceleration control, Anti-Backlash plate cylinder gear, and Micrometer lateral and radial plate cylinder adjustment. The Complete vacuum system with a pump holds each container on mandrels at the necessary position, and Positive timing throughout the machine ensures that each container is printed accurately.
Technical
Unit | Value |
---|---|
Min. & Max Dia. | 80mm x 210mm |
Min. & Max. Height | 100mm x 200mm |
Max Print Area | 630mm (L) x 180mm (H) |
Electric Motor Drive | Ac Gear motor 7.5 HP, 3 Phase, 50Hzs. with inverter for fine speed control |
Pneumatic Pressure | @8-10 kg/cm2 |
Air Consumption | @12m3/hr |
Total Power Consumption | 14 kilowatts |
Max. Impression | @ 2200/hr (4 Ltr Bucket) |
Total Machine Weight | 7500 kgs |
Features
- Auto mechanical loading & unloading of container.
- Flame treatment with auto ignition.
- Instantaneous UV drying.
- Online UV varnish (lacquer) unit for overcoat.
- Individual & independent UV control system printing & varnish unit.
- Auto orientation of container.
- Individual &independent AC motor with varlable AC frequency inverter for variable speed for printing machine & varnish unit.
- Anti-backlash plate cylinder gear.
- Micrometer lateral and radial plate cylinder adjustment.
- Easy to switch over varnish unit if not needed.
- Positive timing through out machine.
- Auto ejection on exit conveyor.
Optional
- Zeromax Drive for auto ink control.
- Magnetic Cylinder from USA
- Corona System.
- Offline Registration.
- PLC Based Ink Transfer System.
- Maintenance Free Ink Distribution System.
