4 to 8 Color Dry Offset Silicon Tube Printer

4 to 8 Color Dry Offset Silicon Tube Printer

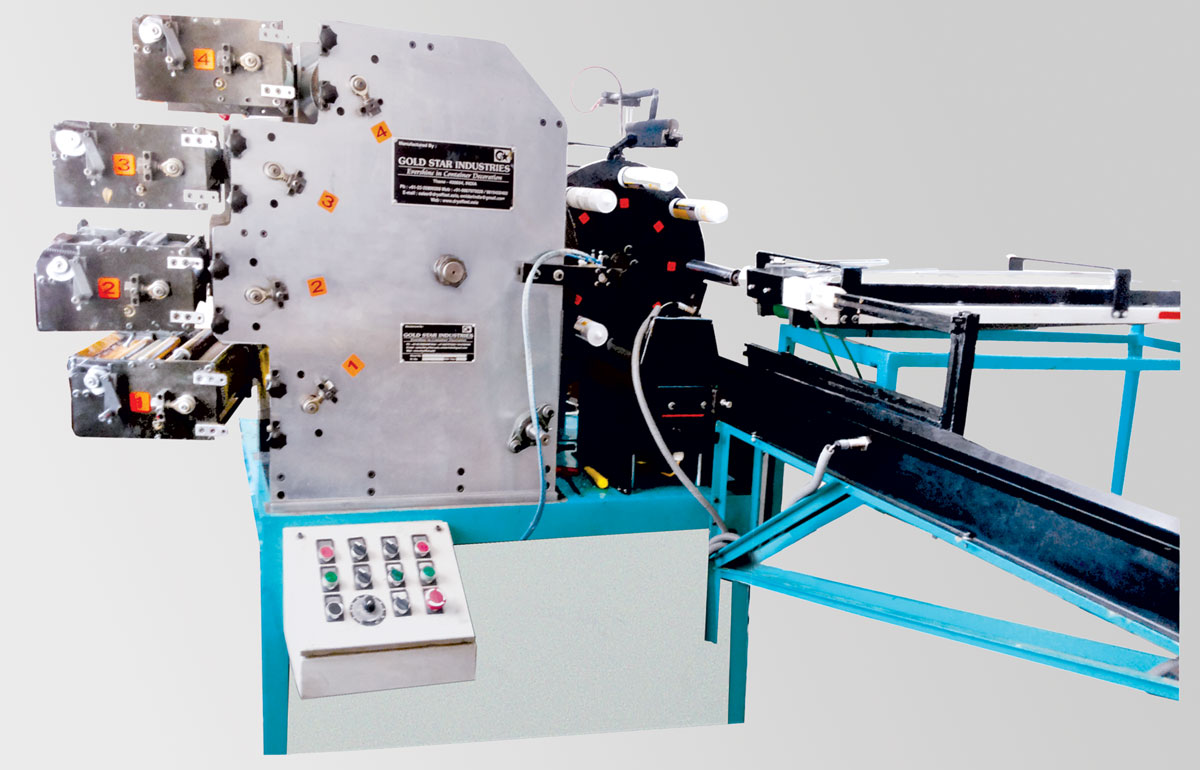

The Goldstar 4-Color Silicon Tube Printer uses dry offset printing technology to provide a high level of decoration on tubes of all types. Variants with 6 or 8 colors are also available. These machines includes features like Auto Loading, Flame treatment with auto ignition, 360° printing with precise registration, Instantaneous UV drying, Auto ejection with exit conveyor, low ink consumption, compact design minimises floor space.

Suitable for printing onto a variety Flexible or Rigid Plastic Tubes, Silicon Caulk Tubes and Metal Tubes, these machines can be tooled to handle most common sizes and types of tube providing an economical, high quality, solution for many printing requirements.

With our flexible designs and customization to meet specific customer requirements, you are sure to find a solution from Goldstar for any project.
4 to 8 Color Silicon Tube Printer - Goldstar

Technical

Unit Value
Min. & Max. Dia. 30mm x 60mm
Min. & Max. Height 80mm x 220mm
Max Print Area 190mm (L) x 210mm (W)
Mode of Feeding Automatic
Machine Speed 40-50 cycles/minute
Number of colors 4/6/8
Max. Impressions 2500 / 3000 tubes per hour
Total power consumption 9 Kilowatts

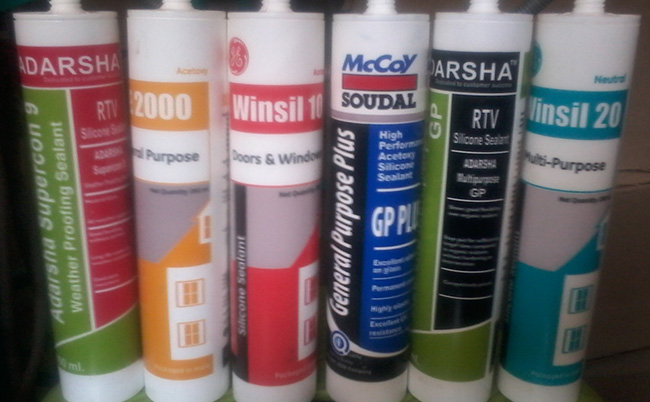

Silicon Tubes printed on a Goldstar Printer
Features
  • Auto Mechanical loading of sealant tubes.
  • Inbuild Flame Treatment with Auto Ignition.
  • 4 Blanket printing with precise registration.
  • UV curing on Mandrel.
  • Auto Ejection on exit conveyor.

Optional
  • Zeromax Drive for auto ink control.
  • Magnetic Cylinder from USA
  • Corona System.
  • Offline Registration.
  • PLC Based Ink Transfer System.
  • Maintenance Free Ink Distribution System.

Machine Videos

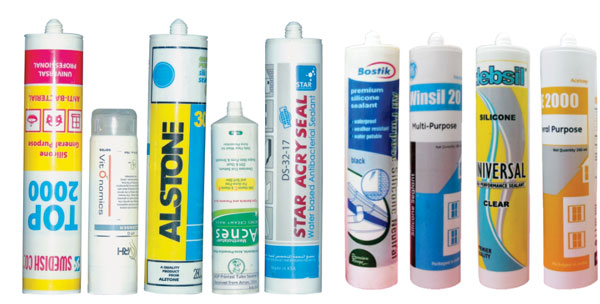

Decorated Caulk Tubes
