Cap and Closure Sidewall Printer

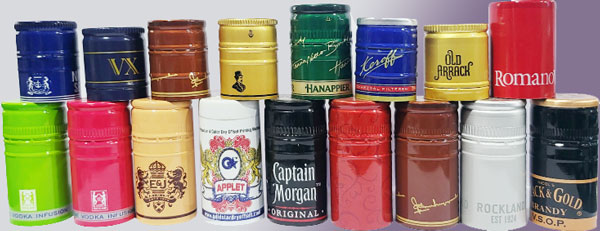

Printer for Plastic and ROPP (Metal) Caps

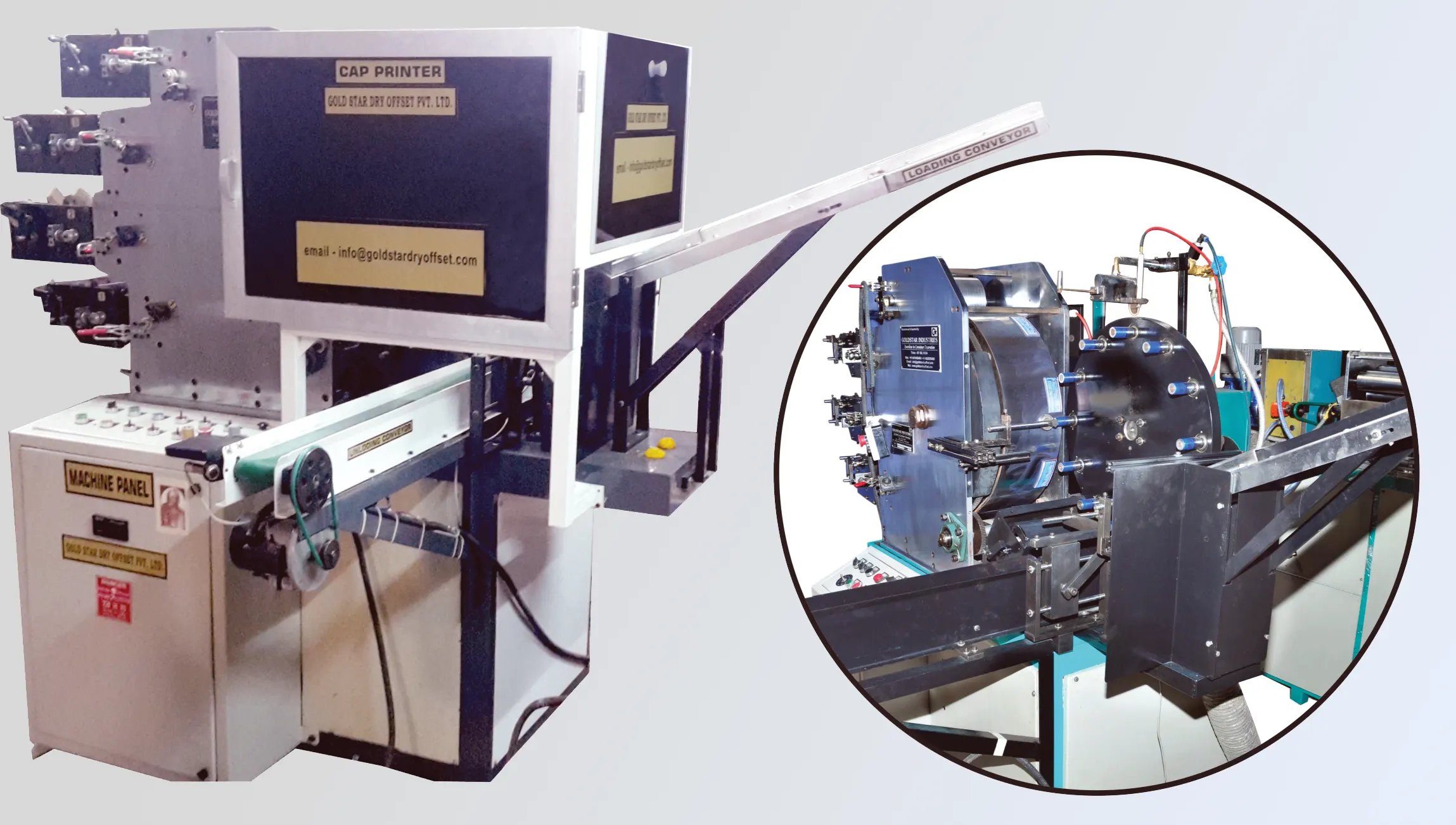

The Goldstar Cap Closure Sidewall Printer is a basic multi-color printer suitable for plastic and ROPP (Metal) products.
Features automatic loading and unloading of the closures, Flame treater with auto ignition, instant UV drying, Inline varnish (lacquer} unit for overcoating.
The machine offers orientation of the component, an Individual &independent AC motor with varlable AC frequency inverter for variable speed printing & varnishing. Anti-backlash plate cylinder gear, Micrometer lateral and radial plate cylinder adjustment. Easy to switch over varnish unit if not needed. Positive timing throughout machine.
Features automatic loading and unloading of the closures, Flame treater with auto ignition, instant UV drying, Inline varnish (lacquer} unit for overcoating.
The machine offers orientation of the component, an Individual &independent AC motor with varlable AC frequency inverter for variable speed printing & varnishing. Anti-backlash plate cylinder gear, Micrometer lateral and radial plate cylinder adjustment. Easy to switch over varnish unit if not needed. Positive timing throughout machine.
Technical
| Unit | Value |
|---|---|
| Min. & Max Dia. | 80mm x 210mm |
| Min. & Max. Height | 100mm x 200mm |
| Max Print Area | 630mm (L) x 180mm (H) |
| Electric Motor Drive | AC Gear motor 7.5 HP, 3 Phase, 50Hzs. with inverter for fine speed control |
| Pneumatic Pressure | @8-10 kg/cm2 |
| Air Consumption | @12m3/hr |
| Total Power Consumption | 14 kilowatts |
| Max. Impression | @ 2200/hr (4 Ltr Bucket) |
| Total Machine Weight | 7500 kgs |
Features
- Auto mechanical loading & unloading of container.
- Flame treatment with auto ignition.
- Instantaneous UV drying.
- Online UV varnish (lacquer) unit for overcoat.
- Individual & independent UV control system printing & varnish unit.
- Auto orientation of container.
- Individual &independent AC motor with varlable AC frequency inverter for variable speed for printing machine & varnish unit.
- Anti-backlash plate cylinder gear.
- Micrometer lateral and radial plate cylinder adjustment.
- Easy to switch over varnish unit if not needed.
- Positive timing throughout machine.
- Auto ejection on exit conveyor.
Optional
- Zeromax Drive for auto ink control.
- Magnetic Cylinder from USA
- Corona System.
- Offline Registration.
- PLC Based Ink Transfer System.
- Maintenance Free Ink Distribution System.
