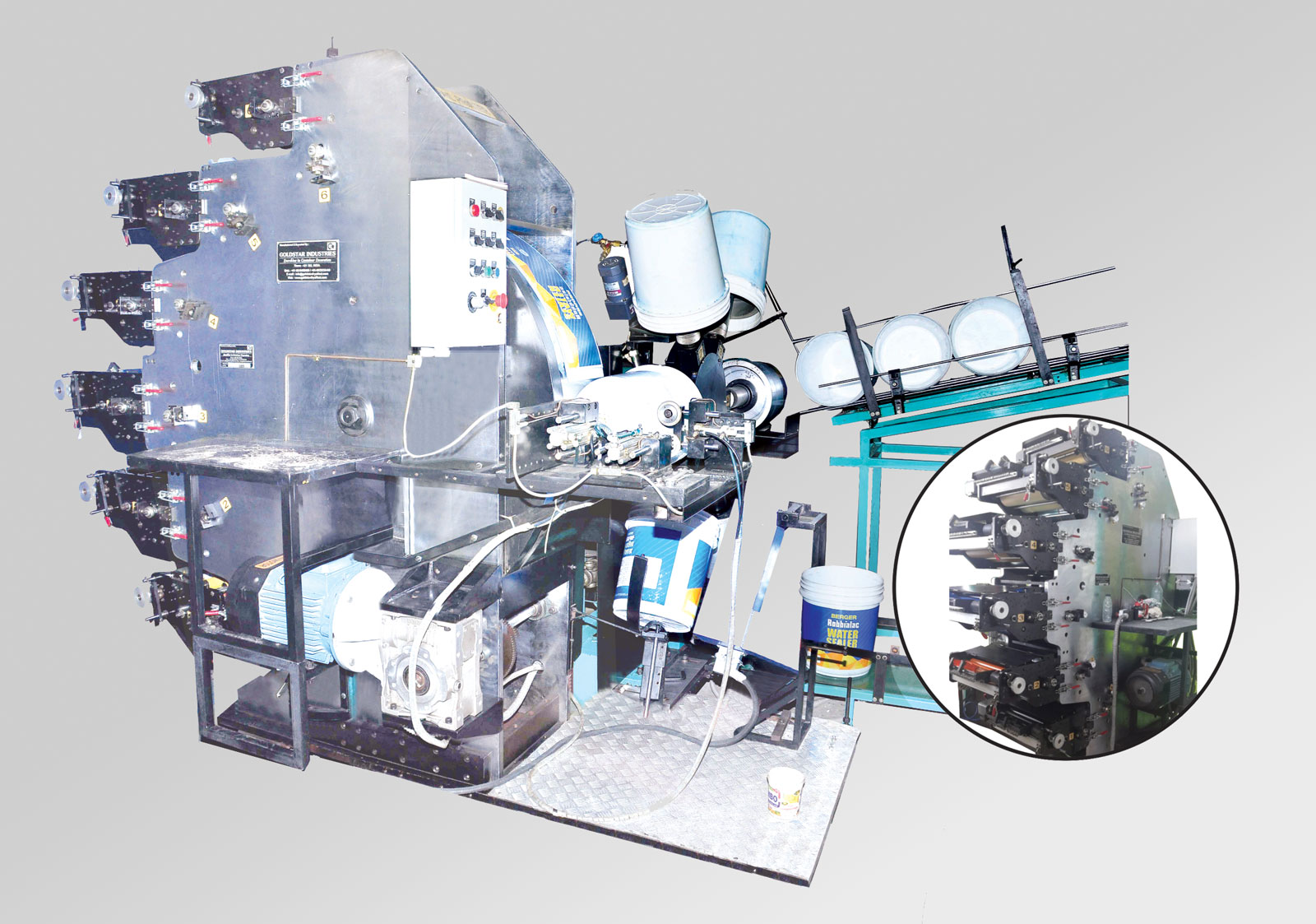

Pail Printer 4-Color Dry Offset
The Pail Printer 4-color offset is an advanced printing solution that guarantees high printing accuracy. This printing machine includes features like Auto Loading, Flame treatment with auto ignition, 360° printing with precise registration and automatic orientation, Instantaneous UV drying, Auto ejection with exit conveyor, Lower ink consumption, Less floor space, and is suitable for conical & cylindrical containers (Wide Mouth).
The machine is equipped with an AC motor with variable AC frequency inverter for variable speed, acceleration, and deceleration control, Anti-Backlash plate cylinder helical gear, and Micrometer lateral and radial plate cylinder adjustment. The Complete vacuum system with a pump holds each container on mandrels at the necessary position, and Positive timing throughout the machine ensures that each container is printed accurately. This pail printer can print about 550 impression per hour with the capability to print from 1 litre to 20 litres pail sizes.
The machine is equipped with an AC motor with variable AC frequency inverter for variable speed, acceleration, and deceleration control, Anti-Backlash plate cylinder helical gear, and Micrometer lateral and radial plate cylinder adjustment. The Complete vacuum system with a pump holds each container on mandrels at the necessary position, and Positive timing throughout the machine ensures that each container is printed accurately. This pail printer can print about 550 impression per hour with the capability to print from 1 litre to 20 litres pail sizes.
Technical
Unit | Value |
---|---|
Min. & Max Dia. | 110mm x 350mm |
Min. & Max. Height | 120mm x 400mm |
Max Print Area | 900mm (L) x 275mm (H) |
Electric Motor Drive | Ac Gear motor 5 HP, 3 Phase, 50Hzs. with inverter for fine speed control |
Pneumatic Pressure | @8-10 kg/cm2 |
Air Consumption | @12m3/hr |
Total Power Consumption | 12 kilowatts |
Max. Impression | @ 500-600/hr (20 Ltr Bucket) |
Total Machine Weight | 6000 kgs |
Machine Dimension | 5500mm(L) x 3000mm(W) x 2500mm(H) (Including Loading & Unloading Conveyor) |
Features
- Zeromax Drive for auto ink control.
- Auto Loading.
- Flame treatment with auto ignition.
- 360 degree printing with precise registration & automatic orientation.
- Instantaneous UV drying.
- Auto ejection with exit conveyor.
- Lower ink consumption.
- Less floor space.
- Suitable for conical & cylindrical container. (Wide Mouth)
- AC motor with variable AC frequency inverter for variablespeed, accelaration and deceleration control.
- Anti - Backlash plate cylinder helical gear.
- Micrometer lateral and radial plate cylinder adjustment.
- Complete vacuum system with pump that holds container on mandrels at neccessary position.
- Positive timing throughout machine.
Optional
- Magnetic plate cylinder.
