Thermal Transfer Label Applicator
Century 350 - for Cylindrical & Conical Containers
Semi-automatic 0.26 - 5.28 US gallon (1 - 20 litre)

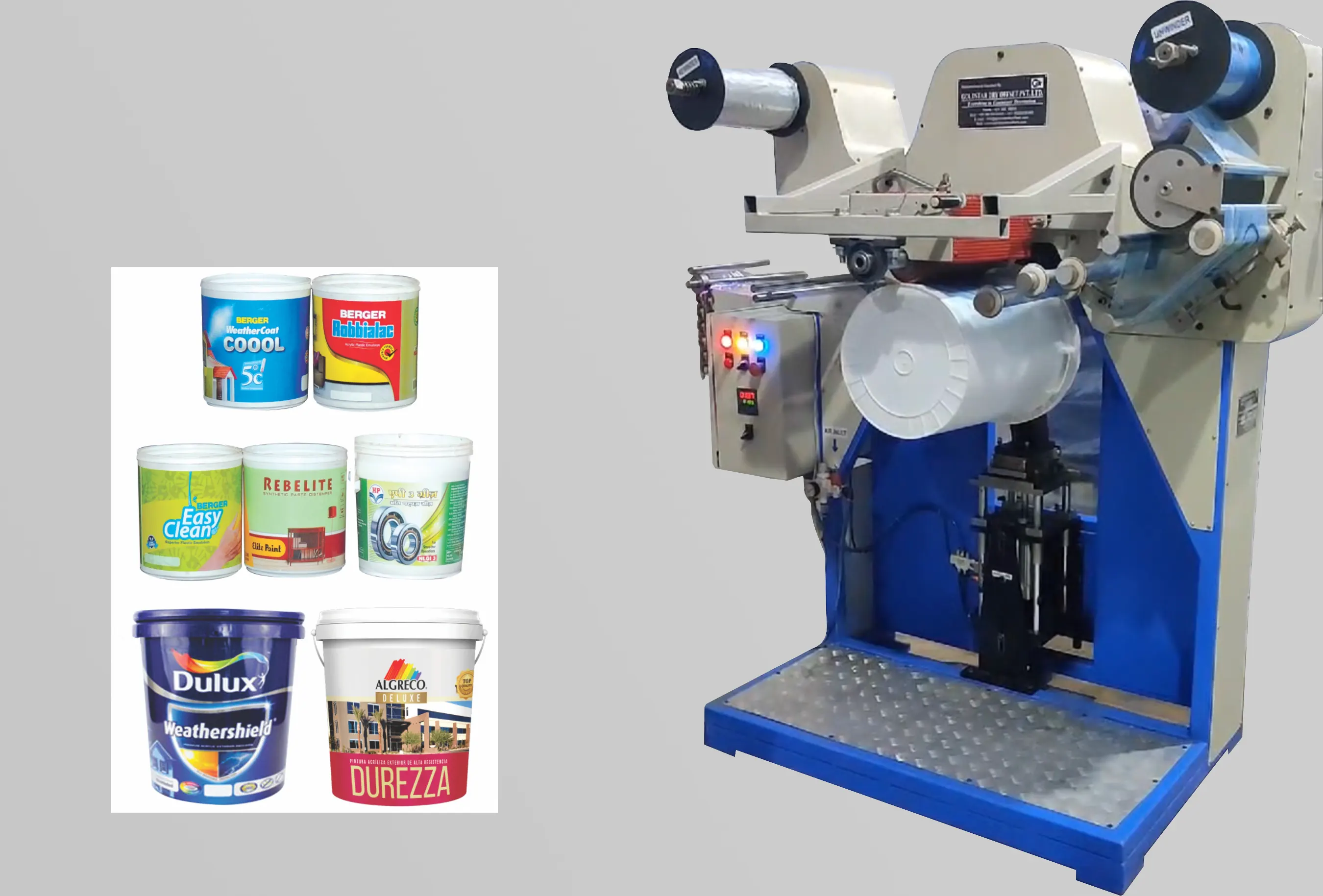

Goldstar's Century 350 Thermal Transfer Label Applicator machine is specifically designed to handle a wide range of cylindrical and conical shaped containers from 1 litre to 20 litres in size ( 0.26 to 5.28 US galls).
The machine is designed to handle and apply a wide range of heat transfer labels and is easily adjustable for different configurations. The machine can be automated by addition of an auto-loading conveyor (optional).
The machine is designed to handle and apply a wide range of heat transfer labels and is easily adjustable for different configurations. The machine can be automated by addition of an auto-loading conveyor (optional).
Technical
| Unit | Value |
|---|---|
| Min. & Max Dia. | Ø 100 mm x Ø 350mm |
| Min. & Max. Height | 100mm x 350mm max. |
| Air Consumption | 4/6 Kg/cm² with dry air |
| Total Power Consumption | 5 KW / 3 phase |
| Machine Dimension | 1600mm (L) x 1500mm (W) x 1500mm (H) |
| Machine Speed | 150 - 170 per hour (20 Ltr Bucket) |
Features
- Adjustable work table.
- PLC Based Control System.
- Mechanical clutch system for Foil Movement.
- Auto positioning of container.
- Auto Loading with loading conveyor (option).
- Vertical foil movement for positive, more accurate movement of foil toward gravitational direction.
- Variable frequency drive helps to control speed of Silicon Roller to suit foil.
- Heater chamber can swing away from Silicon Rubber Roller - increases life by minimising roller damage in case of power failure.
