Rotary Multi-Color Tube Printer
4, 6 or 8-Color Rotary Dry Offset Tube Printers

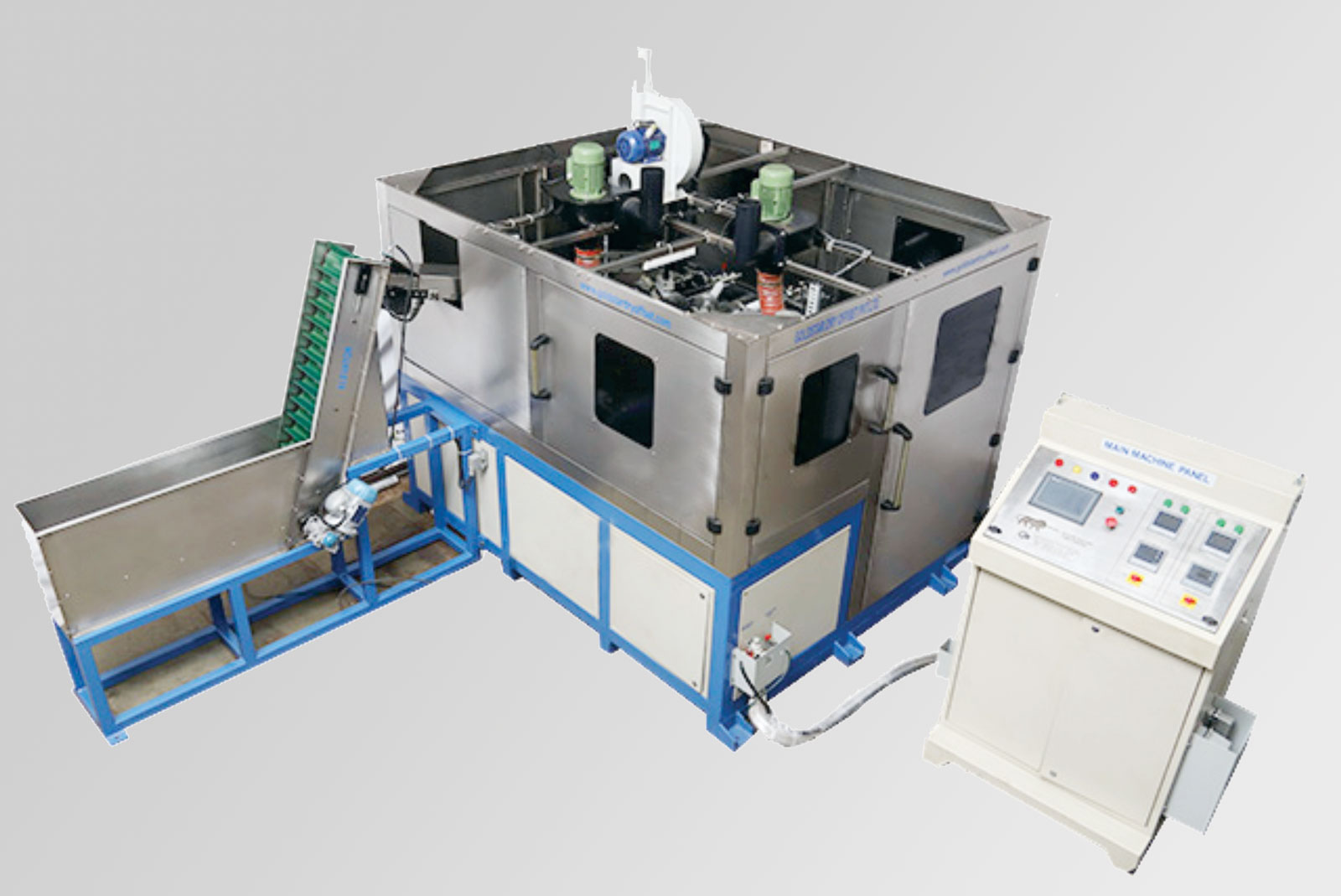

Goldstar's Rotary Multi-color Tube Printer uses dry offset printing technology to provide high levels of decoration on tubes of all types. Variants with 6 or 8 colors are also available. Inline clear coating and varnishing can also be included in these machines to provide an extra level of qualty and sophistication in finish.
These machines includes features like Auto Loading, Flame treatment with auto ignition, 360° printing with precise registration, Instantaneous UV drying, Auto ejection with exit conveyor, low ink consumption, and a compact floorplan minimises space.

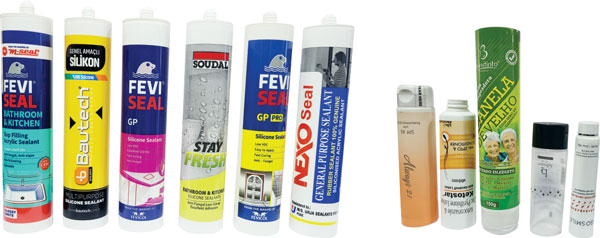

Suitable for printing onto a variety Flexible or Rigid Plastic Tubes, Silicon Caulk Tubes and Metal Tubes, these machines can be tooled to handle most common sizes and types of tube providing an economical, high quality, solution for many printing requirements.
With our flexible designs and customization to meet specific customer requirements, you are sure to find a solution from Goldstar for any project.
These machines includes features like Auto Loading, Flame treatment with auto ignition, 360° printing with precise registration, Instantaneous UV drying, Auto ejection with exit conveyor, low ink consumption, and a compact floorplan minimises space.
Suitable for printing onto a variety Flexible or Rigid Plastic Tubes, Silicon Caulk Tubes and Metal Tubes, these machines can be tooled to handle most common sizes and types of tube providing an economical, high quality, solution for many printing requirements.
With our flexible designs and customization to meet specific customer requirements, you are sure to find a solution from Goldstar for any project.
Technical
Unit | Value |
---|---|
Min. & Max. Dia. | 30mm x 60mm |
Min. & Max. Height | 80mm x 220mm |
Max Print Area | 190mm (L) x 210mm (W) |
Mode of Feeding | Automatic with Hopper |
Machine Speed | 60-75 cycles/minute |
Number of colors | 4/6/8 |
Max. Impression | 3500 / 4500 tubes per hour |
Total power compsumption | 14 Kilowatts |
Features
- Auto mechanical loading & unloading of tube on exit conveyor.
- Flame treatment with auto ignition.
- Instantaneous UV drying.
- 4 Blanket printing with precise registration.
- Online UV varnish unit for overcoat.
- Individual & independent UV control system for printing & varnish.
- Individual & independent AC motor with variable AC frequency inverter for variable speed for printing machine & varnish unit.
- Easy to switch over varnish unit.
- Micrometer lateral and radial plate cylinder adjustment.
- Anti-backlash plate cylinder gear.
- Positive timing through out machine.
Optional Features
- Zeromax Drive for auto ink control.
- Magnetic Cylinder from USA
- Corona System.
- Offline Registration.
- PLC Based Ink Transfer System.
- Maintenance Free Ink Distribution System.
- Multi Speed Gearbox with Neutral Position.
