Hot Foil Stamping Machines

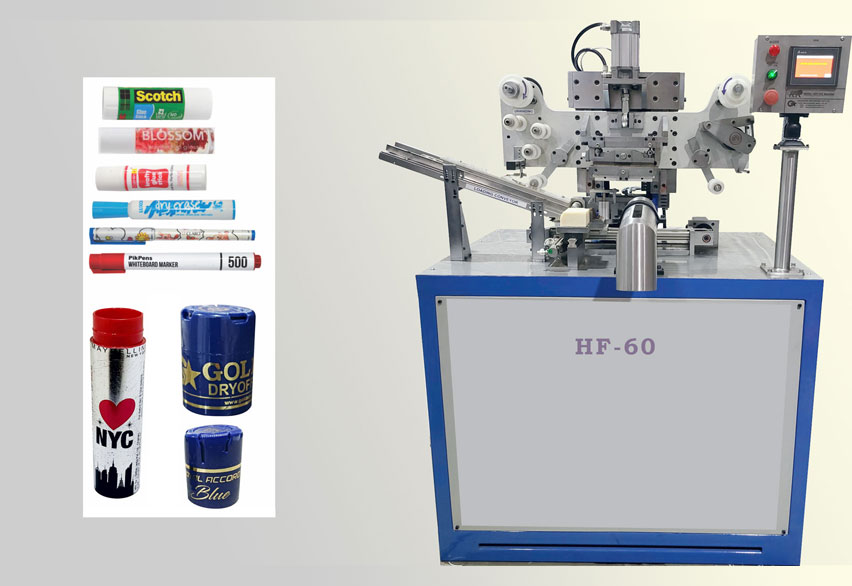

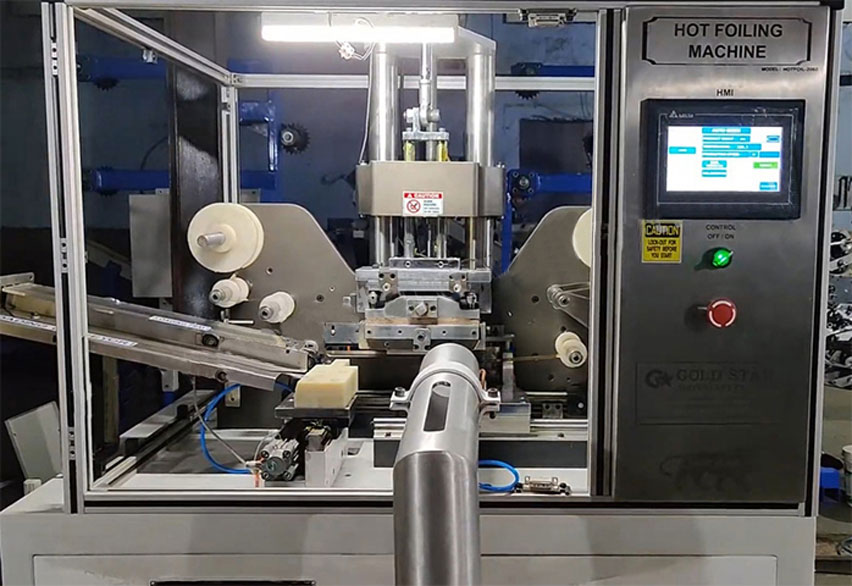

HF-60 & HF-80 Automatic Foil Stampers
Goldstar's range of hot foil stamping machines for decorating cylindrical parts are designed to elevate the aesthetic appeal of various products with precision and efficiency. These robust machines feature industrial-grade chassis, engineered for durability and stability, intuitive control panels allowing operators to easily adjust temperature, pressure, and speed settings, ensuring optimal results for different materials and foil types.
At the heart of the machine lies a powerful heating system that rapidly warms the stamping die to the ideal temperature, facilitating a flawless transfer onto product surfaces. The innovative feeding mechanism is designed to accommodate a wide range of diameters and lengths, making it versatile for various applications, from bottles to cans and specialty containers.
The foil itself, available in an array of colors and finishes—matte, glossy, metallic, and holographic—allows for stunning customization options. As the heated die descends, it presses the foil onto the substrate, creating vibrant, long-lasting designs that resist fading and wear. The machine operates with impressive speed, capable of handling high volumes, making it ideal for production lines aiming for efficiency without compromising quality.
Goldstar Hot Foil Stamping Machines incorporate advanced safety features, such as automatic shut-off and emergency stop buttons, the machines are designed with operator safety in mind. Overall, these automatic hot foil stamping machine represents a perfect fusion of technology and artistry, transforming ordinary cylindrical parts into eye-catching products that capture attention and enhance brand identity.
At the heart of the machine lies a powerful heating system that rapidly warms the stamping die to the ideal temperature, facilitating a flawless transfer onto product surfaces. The innovative feeding mechanism is designed to accommodate a wide range of diameters and lengths, making it versatile for various applications, from bottles to cans and specialty containers.
The foil itself, available in an array of colors and finishes—matte, glossy, metallic, and holographic—allows for stunning customization options. As the heated die descends, it presses the foil onto the substrate, creating vibrant, long-lasting designs that resist fading and wear. The machine operates with impressive speed, capable of handling high volumes, making it ideal for production lines aiming for efficiency without compromising quality.
Goldstar Hot Foil Stamping Machines incorporate advanced safety features, such as automatic shut-off and emergency stop buttons, the machines are designed with operator safety in mind. Overall, these automatic hot foil stamping machine represents a perfect fusion of technology and artistry, transforming ordinary cylindrical parts into eye-catching products that capture attention and enhance brand identity.
Technical
Unit | HF-60 | HF-80 |
---|---|---|
Mode of Feeding | Automatic | Semi or fully Automatic |
Min. - Max. Diameter | Ø 20mm x Ø 60mm | Ø 12mm x Ø 80mm |
Min. - Max. Height | 25mm x 100mm max. | 15mm x 100mm max. |
Air Consumption | 6/8 Kg/cm² with dry air | - |
Power Consumption | 6 KW / 3 phase | 1 KW 230V AC |
Machine Speed | 30-40 ppm | 30-40 ppm (semi-auto). 60 ppm (auto) |
Features
- Parts are auto-orientated out of bowl feeder.
- Linear speed can be controlled by PLC and HMI.
- Temperature can be set from 0 to 300°F as needed.
- Fine adjustment of pressure between cliche and cap.
- Positive ejection of part after printing.
- Settings for different sizes can be stored in HMI.
- Fully adjustable Cliche mounting plate enables adjustments for print requirements.
- Synchronized cycling minimises foil waste.
- Height adjustable to suit different size objects.
- German made system enables precise movement of linear actuator.
- Foil winder and unwinder rollers controlled by individual stepper motor.
