Food & Dairy Container Printer

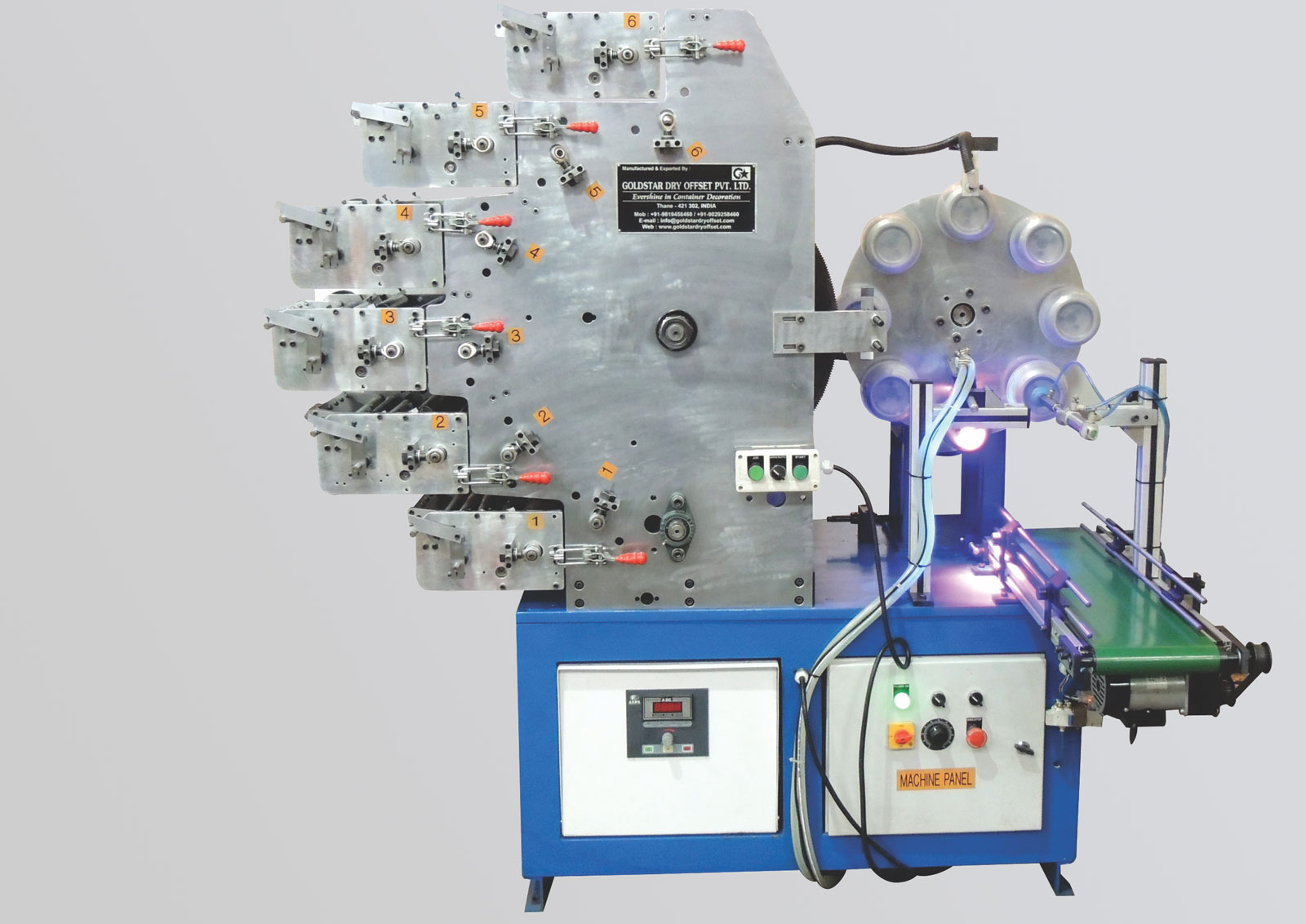

ECO 135 Dry Offset Printer
Goldstar's ECO PRINT 135 food dairy container printer is an economic entry level machine with 4 to 6 color Dry Offset Printing for a widevariety of popular sizes of Food and Dairy Containers.
Manual Loading with automatic unloading onto conveyor. Includes Flame Treater, an AC motor with frequency inverter for variable speed, acceleration and deceleration, fine lateral and radial plate cylinder adjustment.
The machine is capable of speeds of 1,500 to 2,000 containers per hour, subject to size and operator loading speeds.
Manual Loading with automatic unloading onto conveyor. Includes Flame Treater, an AC motor with frequency inverter for variable speed, acceleration and deceleration, fine lateral and radial plate cylinder adjustment.
The machine is capable of speeds of 1,500 to 2,000 containers per hour, subject to size and operator loading speeds.
Technical
| Unit | Value |
|---|---|
| Min. & Max Dia. | 80mm x 120mm |
| Min. & Max. Height | 60mm x 120mm |
| Mode of Feeding | Manual |
| Electric Motor Drive | AC Gear motor 3 HP, 3 Phase, 50Hzs. with inverter for fine speed control |
| Pneumatic Pressure | @8-10 kg/cm2 |
| Air Consumption | 5/6 Kg/cm² with dry air |
| Total Power Consumption | 3.5 kilowatts |
| Max. Impression | @ 2500/hr |
| Total Machine Weight | 3000 kgs |
Features
- Manual loading, auto unloading on exit conveyor.
- Flame treatment with auto ignition.
- 4/6 color printing in single pass.
- Precise registration.
- Fine lateral and radial plate cylinder adjustment.
- Lower ink consumption.
- Variable speed AC drive for easy loading and unloading.
Optional
- Zeromax Drive for auto ink control.
- Magnetic Cylinder from USA
- PLC based ink transfer system.
- Offline Registration.
- UV LED Drying.
