Thermal Heat Transfer Labelers
Century 100 - Semi and fully Automatic Heat Transfer Machines
Equipped with a user-friendly control panel, operators can effortlessly set parameters such as speed, label size, and temperature, allowing for precise customization based on specific labeling requirements.
The designs feature efficient feeding systems that accommodate a wide range of cylindrical objects, including bottles, jars, and tubes, making it versatile for various industries such as food and beverage, cosmetics, and pharmaceuticals.
The adjustable labeling head ensures accurate alignment and placement of labels. One of the standout features of this machine is its ability to handle a variety of thermal transfer ribbons, which come in various colors and finishes. This capability allows for a multitude of designs, including barcodes, logos, and promotional messages, enhancing brand visibility and compliance with labeling regulations.
With Goldstar Century 100 thermal heat transfer label machines, safety is paramount; the machines include emergency stop buttons and protective covers to ensure operator security during operation. Additionally, their compact design allows them to fit seamlessly into existing production lines, optimizing workflow without occupying excessive space.
Technical
Unit | Semi-Automatic | Fully Automatic |
---|---|---|
Mode of Feeding | Semi-Automatic | Automatic on Mandrel |
Min. - Max. Diameter | Ø 20mm x Ø 100mm | Ø 30mm x Ø 100mm |
Min. - Max. Height | 50mm x 150mm max. | 50mm x 150mm max. |
Air Consumption | 4/6 Kg/cm² with dry air | 6/8 Kg/cm² with dry air |
Power Consumption | 4 KW / 3 phase | 6 KW 230V AC |
Machine Dimensions | 1,200mm (L) x 1,600mm (W) x 1,200mm (H) | 1,900mm (L) x 1,200mm (W) x 1,800mm (H) |
Machine Speed | 500-600 per hour | 1,800-2,200 ppm (semi-auto). 60 ppm (auto) |

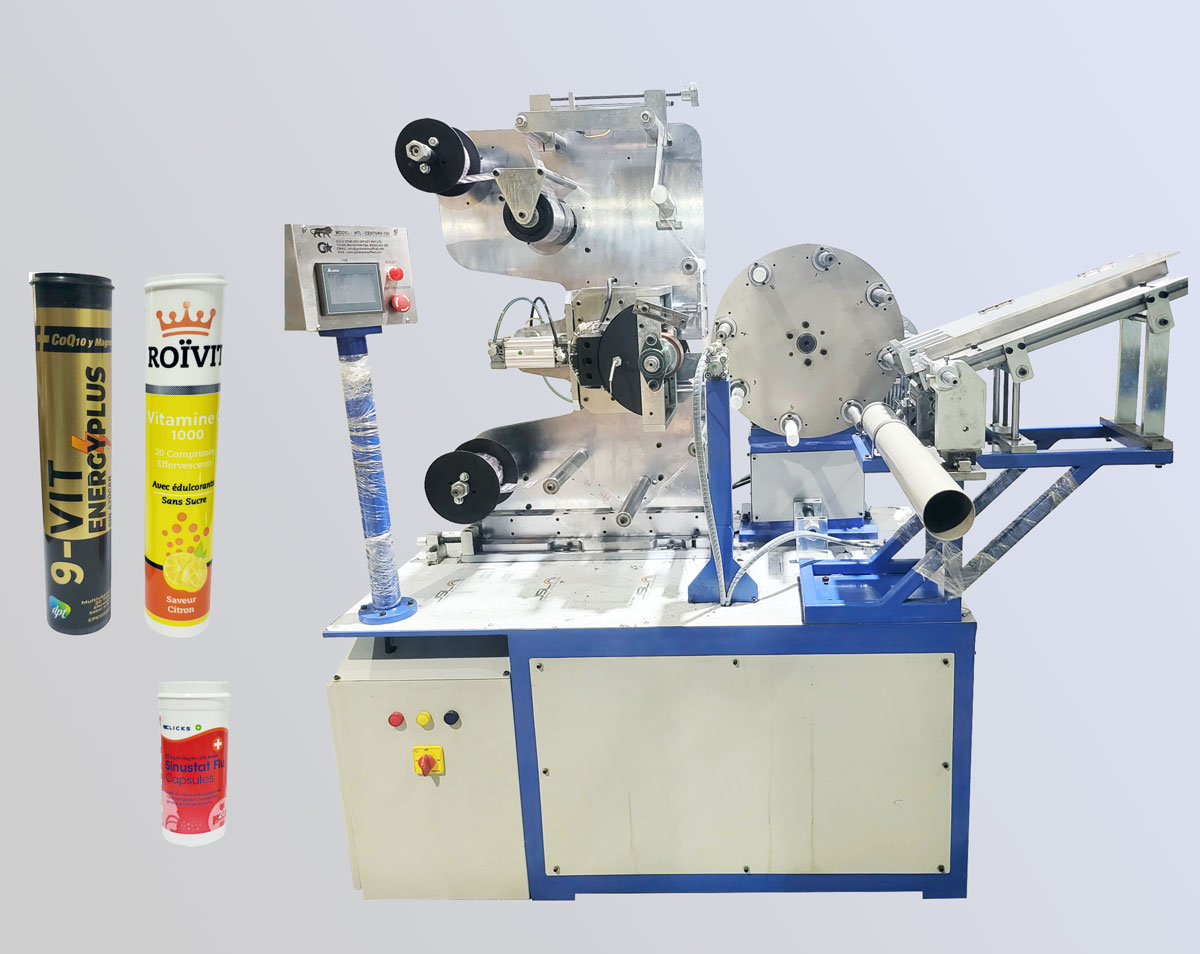

Features - Fully Automatic
- 8-station indexer with brake motor for positive stop at printing position.
- Machine equipped with PLC based system and HMI interface.
- Auto loading and unloading of container.
- Vertical label adjustment for positive, accurate movement in gravitational direction.
- Individual variable frequency drive for silicon roller helps control speed for different foils.
- Special provisions incorporated to avoid damage to silicon roller in event of power failure.
- Individual motor provided for orientation spinning device.
- Fully adjustable indexing head to accommodate a wide range of different parts.
- Taper adjustment up to 6° angle.

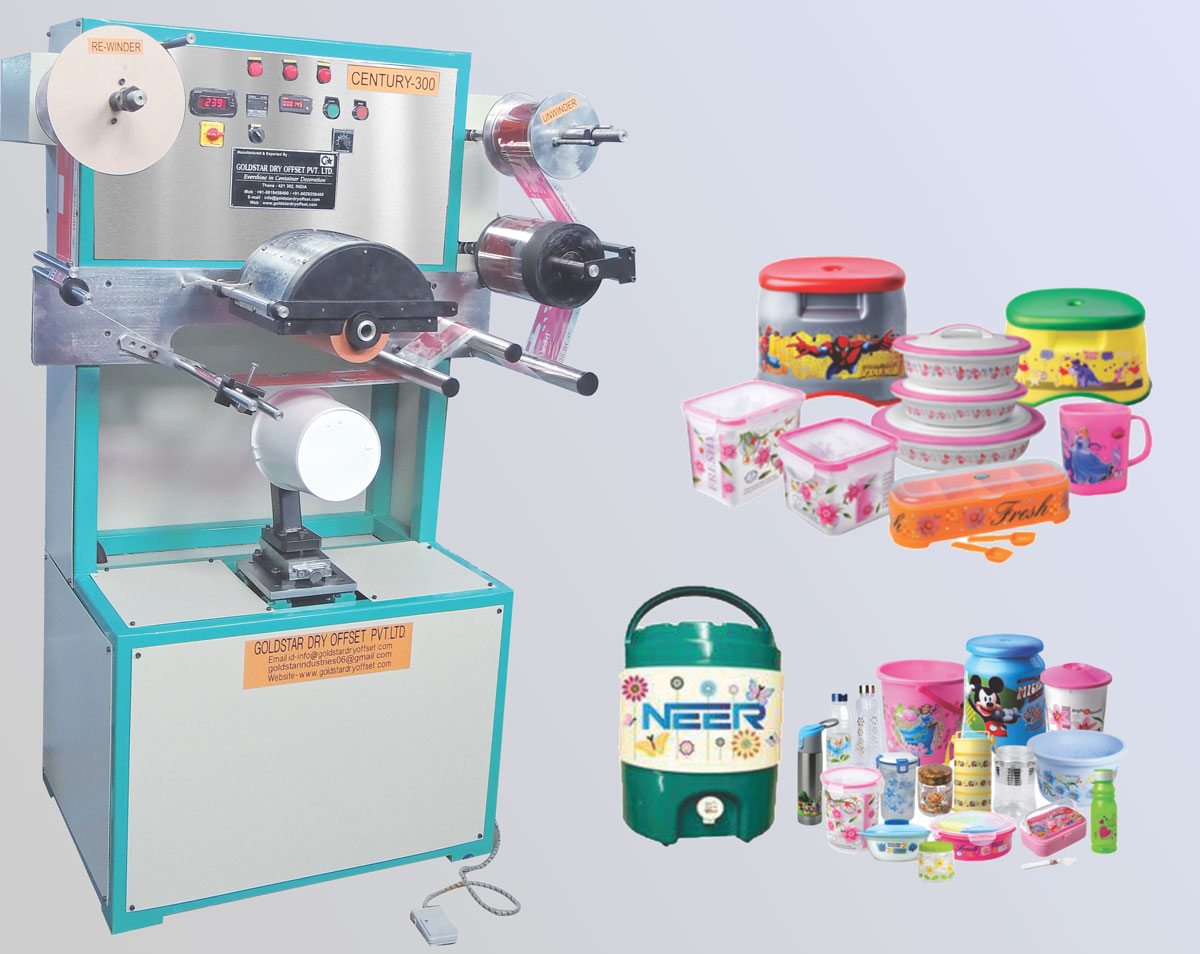

Features - Semi-Automatic
- Fully adjustable work table.
- Suitable for Flat, Cylindrical and Conical parts.
- Semi or Auto mode operation.
- Mechanical clutch for controlling foil movement.
- Heater chamber can swing away from Silicon Roller, helps to increase life and prevent damage.
