One Gallon Pail Offset Printer
Tub and Pail Printer - 1 to 5 litre (0.26 to 1.32 US Gall)

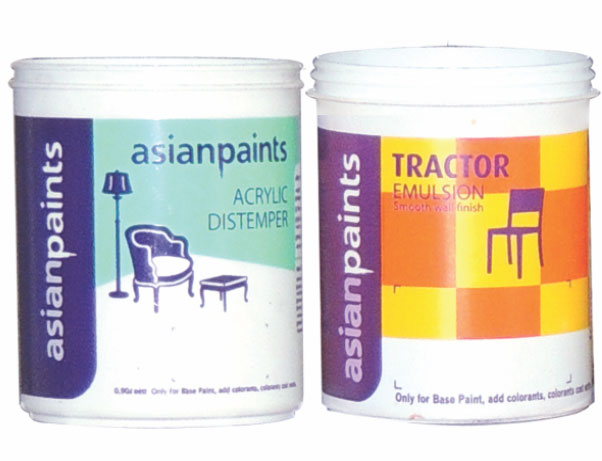

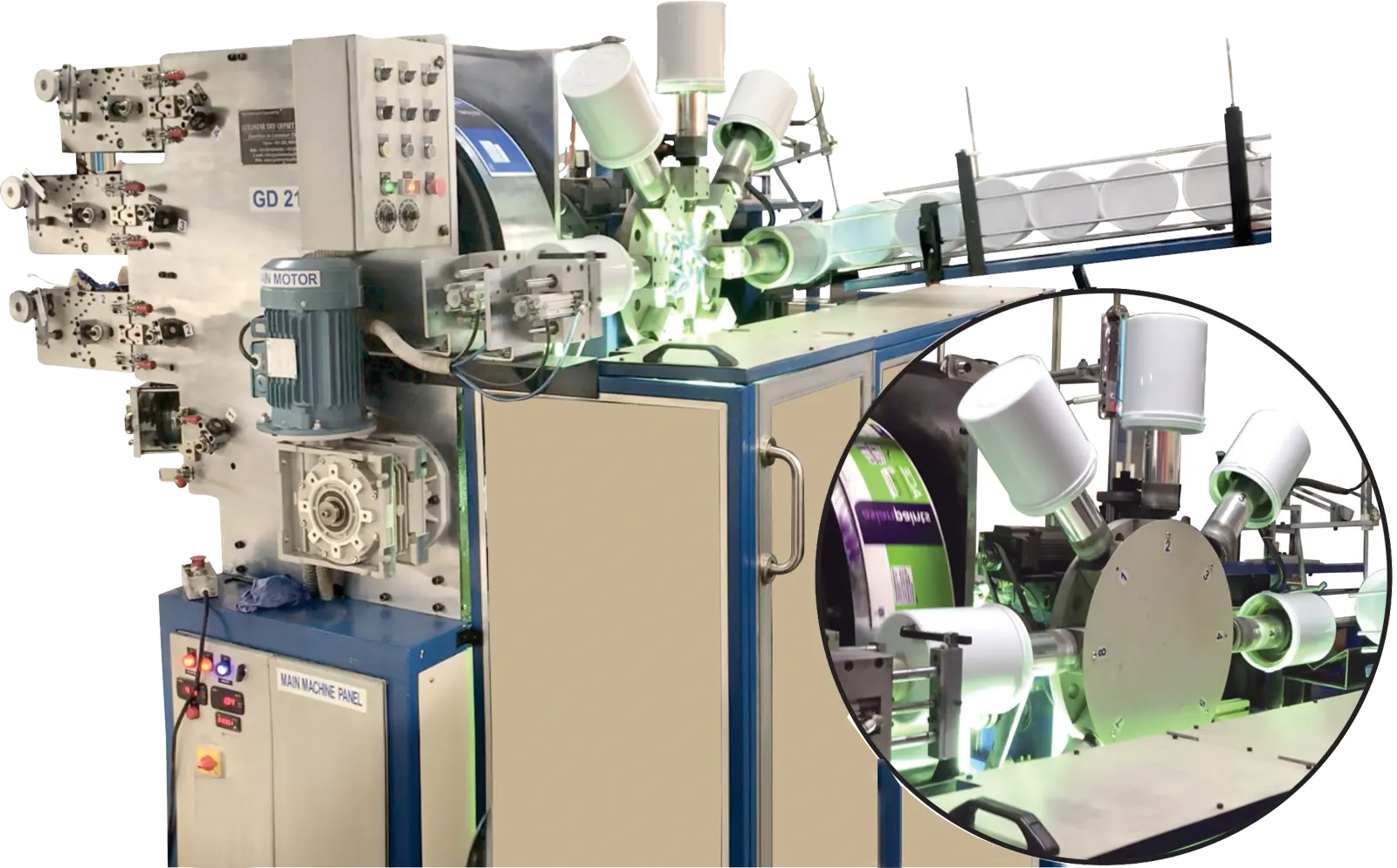

Goldstar's gallon pail offset printer is a highly advanced printing solution that guarantees high printing accuracy. This Four color dry offset tub and pail printing machine includes features like Auto Loading, Flame treatment with auto ignition, 360° printing with precise registration, Instantaneous UV drying, Auto ejection with exit conveyor, Lower ink consumption, Less floor space, and is suitable for conical & cylindrical containers (Wide Mouth).
The machine is equipped with an AC motor with variable AC frequency inverter for variable speed, acceleration, and deceleration control, Anti-Backlash plate cylinder gear, and Micrometer lateral and radial plate cylinder adjustment. The Complete vacuum system with a pump holds each container on mandrels at the necessary position, and Positive timing throughout the machine ensures that each container is printed accurately.
The machine is equipped with an AC motor with variable AC frequency inverter for variable speed, acceleration, and deceleration control, Anti-Backlash plate cylinder gear, and Micrometer lateral and radial plate cylinder adjustment. The Complete vacuum system with a pump holds each container on mandrels at the necessary position, and Positive timing throughout the machine ensures that each container is printed accurately.
Technical
Unit | Value |
---|---|
Min. & Max Dia. | 80mm x 210mm |
Min. & Max. Height | 100mm x 200mm |
Max Print Area | 630mm (L) x 180mm (H) |
Electric Motor Drive | Ac Gear motor 5 HP, 3 Phase, 50Hzs. with inverter for fine speed control |
Pneumatic Pressure | @8-10 kg/cm2 |
Air Consumption | @12m3/hr |
Total Power Consumption | 9.5 kilowatts |
Max. Impression | @ 2200/hr (4 Ltr Bucket) |
Total Machine Weight | 5500 kgs |
Features
- Auto Loading.
- Flame treatment with auto ignition.
- Instantaneous UV drying.
- Auto Ejection with exit conveyor.
- Lower ink consumption.
- Less Floor space.
- AC Motor with AC frequency inverter for variable speed, acceleration and deceleration control.
- Anti-backlash plate cylinder gear.
- Micrometer lateral and radial plate cylinder adjustment.
- Complete vacuum system with pump that holds container on mandrels at necessary position.
- Positive timing through out machine.
Optional
- Zeromax Drive for auto ink control.
- Magnetic Cylinder from USA
- Corona System.
- Offline Registration.
- PLC Based Ink Transfer System.
- Maintenance Free Ink Distribution System.
